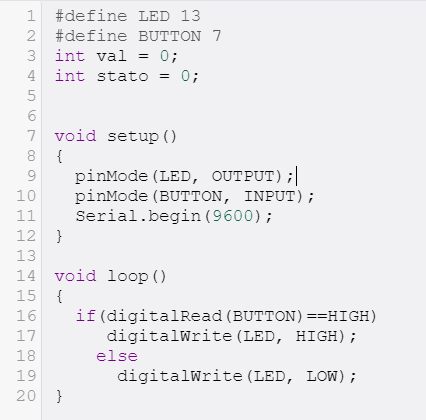

#define LED 13
#define BUTTON 7
int val = 0;
int stato = 0;
void setup(){
pinMode(LED, OUTPUT);
pinMode(BUTTON, INPUT);
Serial.begin(9600);
}
void loop(){
if(digitalRead(BUTTON)==HIGH)
digitalWrite(LED, HIGH);
else
digitalWrite(LED, LOW);
}
Variante 2.
#define LED 13 #define BUTTON 7 int val = 0; int stato = 0; void setup(){
pinMode(LED, OUTPUT);
pinMode(BUTTON, INPUT);
Serial.begin(9600);
}
|
void loop(){
val = digitalRead(BUTTON);
if(val == HIGH){
stato = 1 - stato;
delay(100);
}
if(stato==1){
digitalWrite(LED, HIGH);
}
if(stato==0){
digitalWrite(LED, LOW);
}
Serial.println(stato); } |
Variante 3.
#define LED 13 #define BUTTON 7 int val = 0; int stato = 0; int vecchio = 0; void setup(){
pinMode(LED, OUTPUT);
pinMode(BUTTON, INPUT);
Serial.begin(9600);
}
void loop(){
val = digitalRead(BUTTON);
if(val == HIGH && vecchio == LOW){
stato = 1 - stato;
delay(100);
}
|
vecchio = val;
if(stato==1){
digitalWrite(LED, HIGH);
delay(200);
digitalWrite(LED, LOW);
delay(200);
}
else digitalWrite(LED, LOW); Serial.println(stato); } |
