Accendere una lampada da remoto.

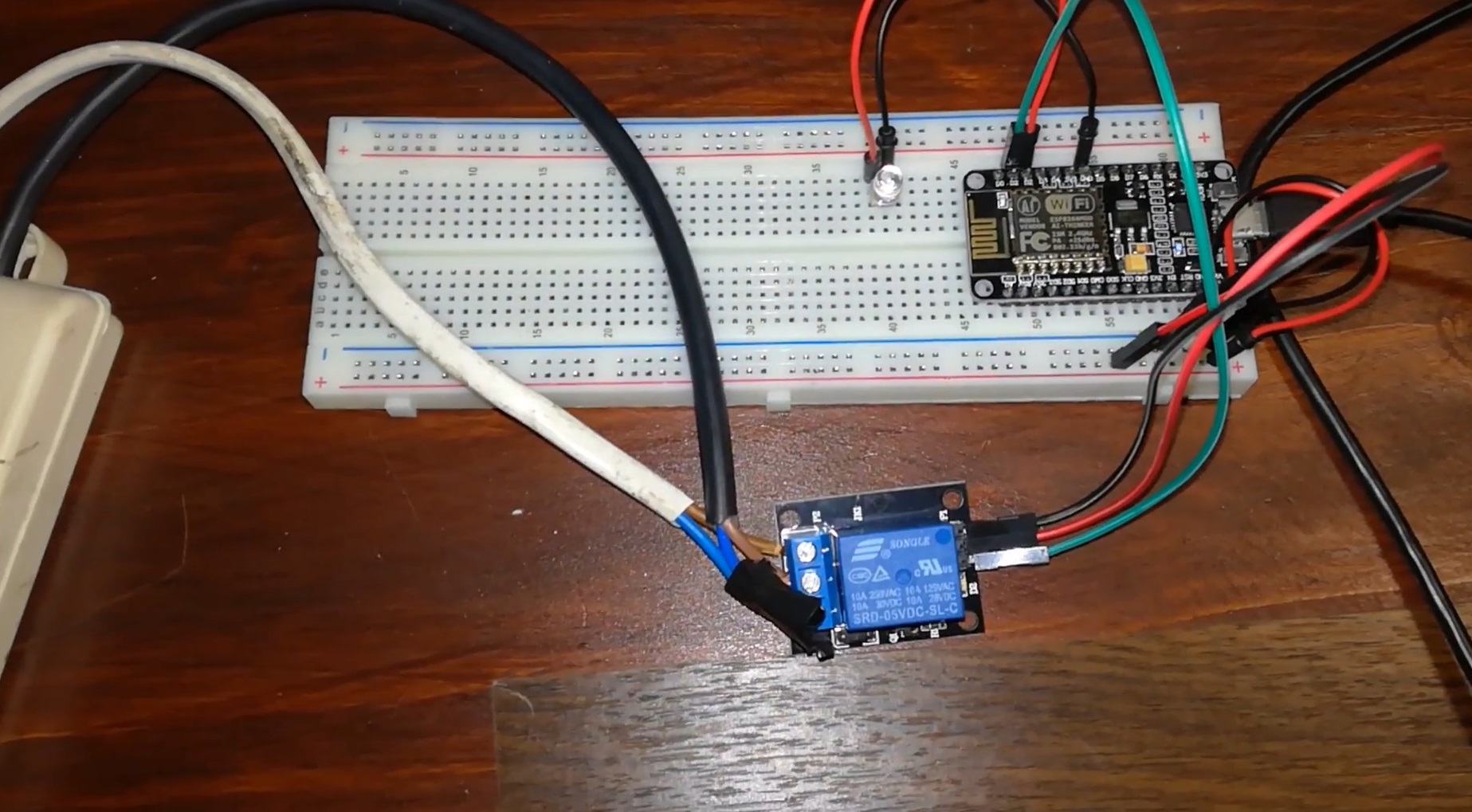

In questo articolo inseriamo il link ad un videotutarial che consente di accendere una lampada 220 volt con un esp8266 tramite wifi utilizzando un client come Google Crome o un qualunque browser.

Occorrente:

  • NodeMCU ESP8266,   9€
  • un relè,   3€
  • cavi,   1€
  • IDE arduino,   free
  • Wifi di casa,
  • il browser.

















Il server da flashare sul nodemcu



#include <ESP8266WiFi.h>//libreria
const char* ssid = “…….”; // mettere wifi
const char* password = “……..”;// mettere pass

; //
WiFiServer server(80);

void setup() {
Serial.begin(115200);
delay(10);
pinMode(5, OUTPUT);
pinMode(4, OUTPUT);
pinMode(0, OUTPUT);
pinMode(13, OUTPUT);
digitalWrite(5, LOW);
digitalWrite(4, LOW);
digitalWrite(0, LOW);
digitalWrite(13, LOW);

// connettersi alla rete wifi
Serial.println();
Serial.println();
Serial.print(“Connecting to “);
Serial.println(ssid);

WiFi.begin(ssid, password);

while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(“.”);
}
Serial.println(“”);
Serial.println(“WiFi connected”);

// avvia il server
server.begin();
Serial.println(“Server started”);

// stampa l’indirizzo wifi
Serial.print(“Use this URL to connect: “);
Serial.print(“http://”);
Serial.print(WiFi.localIP());
Serial.println(“/”);

}

void loop() {
// verifica se un cliente è connesso
WiFiClient client = server.available();
if (!client) {
return;
}

// attende fino a quando il client invia alcuni dati
Serial.println(“new client”);
while(!client.available()){
delay(1);
}

// legge la prima riga della richiesta
String request = client.readStringUntil(‘\r’);
Serial.println(request);
client.flush();

// partita la richiesta

if (request.indexOf(“/light1on”) > 0) {
digitalWrite(5, HIGH);

}
if (request.indexOf(“/light1off”) >0) {
digitalWrite(5, LOW);

}

if (request.indexOf(“/light2on”) > 0) {
digitalWrite(4, HIGH);

}
if (request.indexOf(“/light2off”) >0) {
digitalWrite(4, LOW);

}
if (request.indexOf(“/light3on”) >0) {
digitalWrite(0, HIGH);

}
if (request.indexOf(“/light3off”) > 0) {
digitalWrite(0, LOW);

}
if (request.indexOf(“/light4on”) > 0) {
digitalWrite(13, HIGH);

}
if (request.indexOf(“/light4off”) > 0) {
digitalWrite(13, LOW);

}
// imposta ledPin secondo la richiesta
//digitalWrite(ledPin, value);

// Return the response
client.println(“HTTP/1.1 200 OK”);
client.println(“Content-Type: text/html”);
client.println(“”); // do not forget this one
client.println(“<!DOCTYPE HTML>”);
client.println(“<html>”);
client.println(“<head>”);
client.println(“<meta name=’apple-mobile-web-app-capable’ content=’yes’ />”);
client.println(“<meta name=’apple-mobile-web-app-status-bar-style’ content=’black-translucent’ />”);
client.println(“</head>”);
client.println(“<body bgcolor = \”#f7e6ec\”>”);
client.println(“<hr/><hr>”);
client.println(“<h4><center> Esp8266 Electrical Device Control </center></h4>”);
client.println(“<hr/><hr>”);
client.println(“<br><br>”);
client.println(“<br><br>”);
client.println(“<center>”);
client.println(“Device 1”);
client.println(“<a href=\”/light1on\”\”><button>Turn On </button></a>”);
client.println(“<a href=\”/light1off\”\”><button>Turn Off </button></a><br />”);
client.println(“</center>”);
client.println(“<br><br>”);
client.println(“<center>”);
client.println(“Device 2”);
client.println(“<a href=\”/light2on\”\”><button>Turn On </button></a>”);
client.println(“<a href=\”/light2off\”\”><button>Turn Off </button></a><br />”);
client.println(“</center>”);
client.println(“<br><br>”);
client.println(“<center>”);
client.println(“Device 3”);
client.println(“<a href=\”/light3on\”\”><button>Turn On </button></a>”);
client.println(“<a href=\”/light3off\”\”><button>Turn Off </button></a><br />”);
client.println(“</center>”);
client.println(“<br><br>”);
client.println(“<center>”);
client.println(“Device 4”);
client.println(“<a href=\”/light4on\”\”><button>Turn On </button></a>”);
client.println(“<a href=\”/light4off\”\”><button>Turn Off </button></a><br />”);
client.println(“</center>”);
client.println(“<br><br>”);
client.println(“<center>”);
client.println(“<table border=\”5\”>”);
client.println(“<tr>”);
if (digitalRead(5))
{
client.print(“<td>Light 1 is ON</td>”);

}
else
{
client.print(“<td>Light 1 is OFF</td>”);

}

client.println(“<br />”);

if (digitalRead(4))
{
client.print(“<td>Light 2 is ON</td>”);

}
else
{

client.print(“<td>Light 2 is OFF</td>”);

}
client.println(“</tr>”);

client.println(“<tr>”);

if (digitalRead(0))

{
client.print(“<td>Light 3 is ON</td>”);

}

else

{
client.print(“<td>Light 3 is OFF</td>”);
}

if (digitalRead(13))

{

client.print(“<td>Light 4 is ON</td>”);

}

else

{

client.print(“<td>Light 4 is OFF</td>”);

}

client.println(“</tr>”);

client.println(“</table>”);

client.println(“</center>”);
client.println(“</html>”);
delay(1);
Serial.println(“Client disonnected”);
Serial.println(“”);

}
